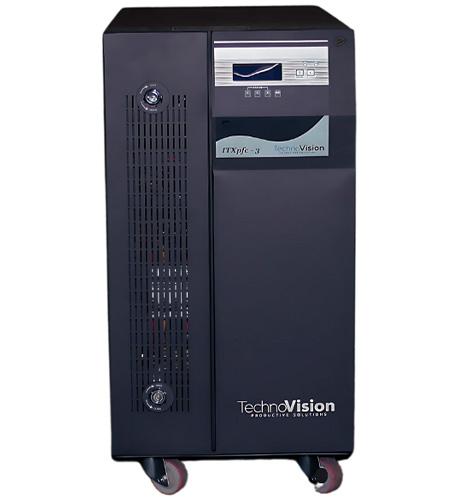

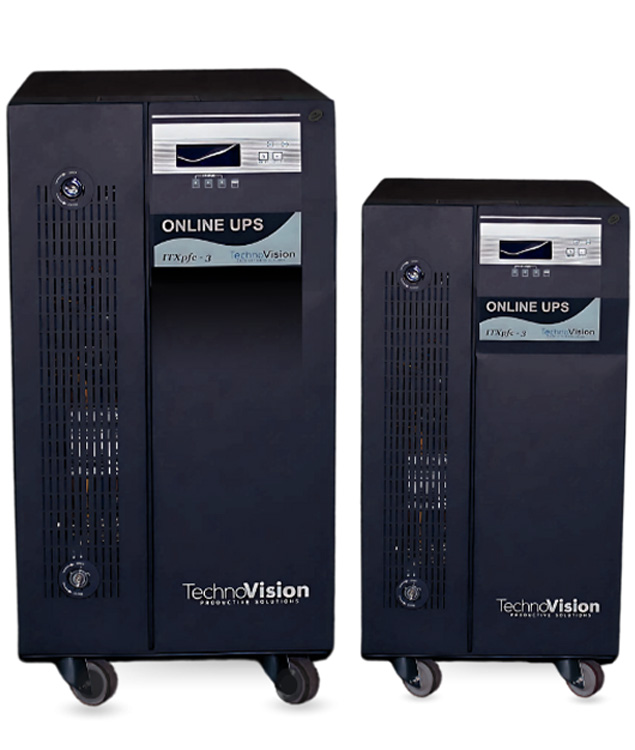

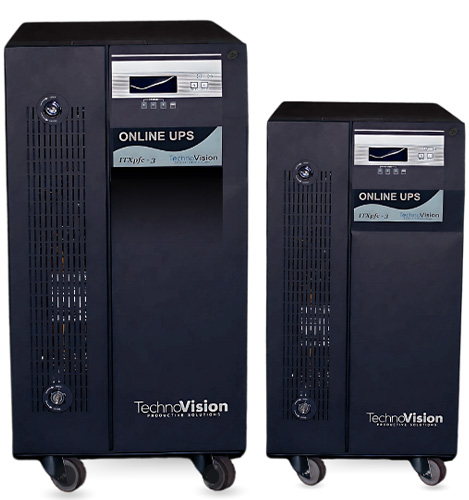

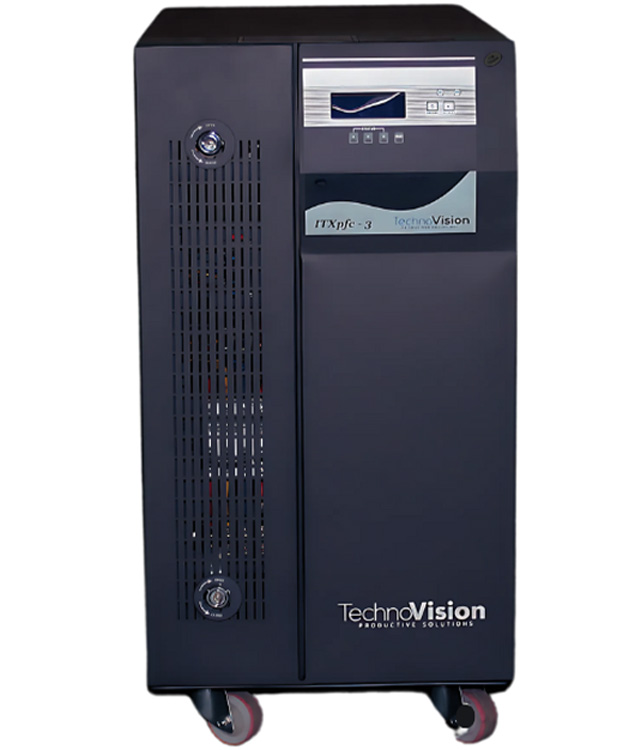

Features:
- Rugged Industrial Design
- Near Unity PF & High Efficiency
- Galvanic Isolation
- Digital Microcontroller based Circuits
- High Operating Efficiency
- Better THDi parameters
- Intelligent Battery Management
- Handles Unbalanced Loading
Applications
Advantages
- Machine Safety
- Increased Uptime
- Low Maintenance cost
- Lower or Negligible production loss
- Power backup prevents machine damage
Protections
- Output Over Voltage
- Output Over Load
- Output Under Voltage
- Output short circuit
- Temperature high
- Input phase fail, phase reverse
Technical Specifications
| Technology | DSP based, IGBT inverter-IGBT converter Online UPS. |
|---|---|
| Rating | 5KVA -60KVA |
| DC BUS | 192VDC - 360VDC |
Input
| Input Voltage | 415VAC, 3Ø & N |
| Input Voltage Window | 360VAC - 460VAC, 330VAC - 470VAC |
| Input PFC - 100% Load | > 0.95 |
| Power walk in | Soft start for 0-20 seconds power walk-in. |
| Input Frequency | 45-55Hz |
Inverter
| Inverter Type | IGBT-based MPWM with instantaneous Sinewave Control | ||||||
|---|---|---|---|---|---|---|---|
| Nominal Voltage | 230VAC, 1Φ, P-N | ||||||
| Output PF | 0.8 lagging to Unity | ||||||
| Regulation | ( ± ) 1% | ||||||
| Waveform | True Sinewave | ||||||
| Frequency | 50 Hz ± 0.1Hz | ||||||
| Total Harmonic Distortion |
|
||||||
| Transient Response | Remains within +/- 5% & recover to normal within 20 msec | ||||||
| Over Load Capacity |
|
||||||
| Mode of Operation | Designed for Continuous operation | ||||||
| Isolation | True Online with complete galvanic isolation. | ||||||
| Crest Factor | 3:1 | ||||||
| Protections | Inverter Protection Advanced Electronic Protection for device safety backed up with MCB’s/ MCCBs & fast acting fuses,high speed pulse by pulse electronic device protection over voltage / under voltage protection, Electronic over current trip. | ||||||
| Alarms |
|
||||||
| LED Indications (Single LED with multi function) |
|
Bypass
| Manual Bypass | Provided |
|---|
Rrectifier
| Type | IGBT based full bridge |
| Voltage Regulation | ( ± ) 1% |
| Ripple Voltage | < 2% |
| Converter Protection | Advanced Electronic Protection for device safety backed up with MCB’s/ MCCBs & fast acting fuses |
