Features
- Quick response time
- Excellent regulation (± 1%)
- Very high efficiency
- No waveform distortion
- Uses solid state control circuits
Advantages
- Stable power
- Equipment safety
- Energy saving
- Low Investment
- Low Maintenance
Protections
- Under / Over Voltage
- Over Load Protection
- Short Circuit
- By Pass Switch
Technical Specifications
| Parameters | Ratings |
|---|---|
| Input Voltage | 230 +/- 15% VAC, 3 phase, 50/60 Hz, 4 wire (Customizable input voltage range are available) |
| Output Voltage | 230,240 VAC settable (110 VAC options available) |
| Input Voltage Range | (170-270) / (150 - 300) VAC Customized options available |
| Stabilizer Control Technology | Servo motor controlled by DSPic microcontroller |
| Operating frequency | 50/60 Hz (47 – 52) range |
| Response time | < 3-10 msecs |
| Rate of Correction | 10 V / Sec |
| Efficiency | > 98% |
| Wave form Distortion | Nil |
| Effect on Power Factor | Nil |
| Operating Temperature | -5 to 50 Degree C |
| Storage Temperature | 0 – 70 Degree C |
| Duty of operation | Continuous at 100%, INDUSTRIAL grade design |
| Cooling | Natural Air Cooling |
| IP protection grade | IP20 |
| Magnetics grade | Class F insulation (Class H as per requirement) |
| Output Voltage Regulation | +/- 1%, 3% between specified range |
Protections
| Parameters | Specifications |
|---|---|
| Under / Over Voltage | Contactor/ Relay |
| Short Circuit | Contactor & Circuit Breaker |
| Over Load Protection | Circuit Breaker |

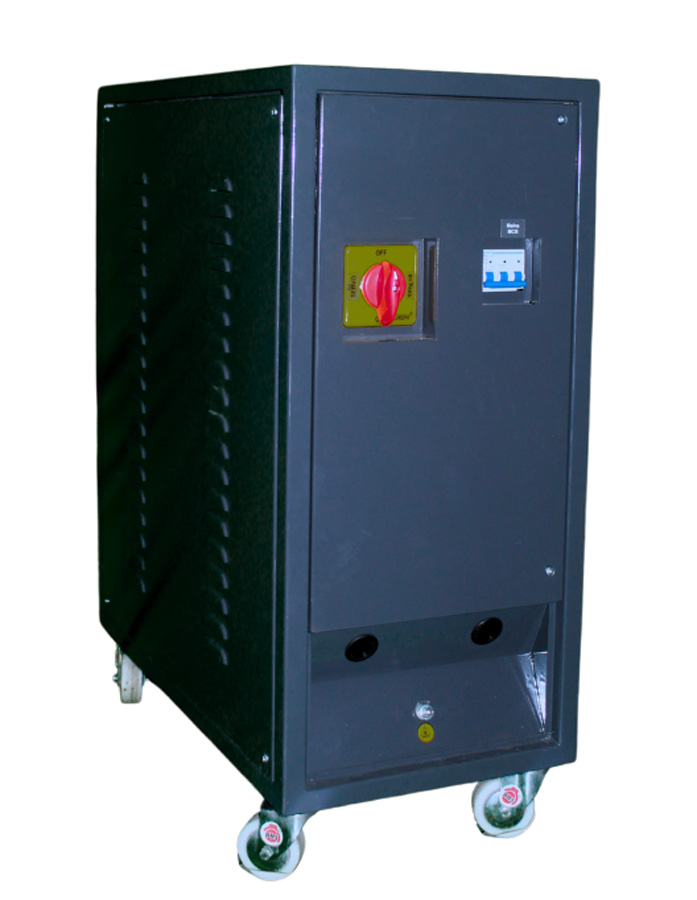

| By Pass Switch | Manual Rotary bypass in case of stabilizer failure. |
Indications
| Parameters | Specifications |
|---|---|
| Mains On | LED On LCD Display |
| Under/Over Voltage | On LCD Display |
| Voltmeter | 0 – 300 VAC every phase |
| Output voltage setting | Can be set the output voltage from the front panel |
| Output Current | On LCD Display |
| Output Frequency | On LCD Display |
| Fault Indications | On LCD Display |
