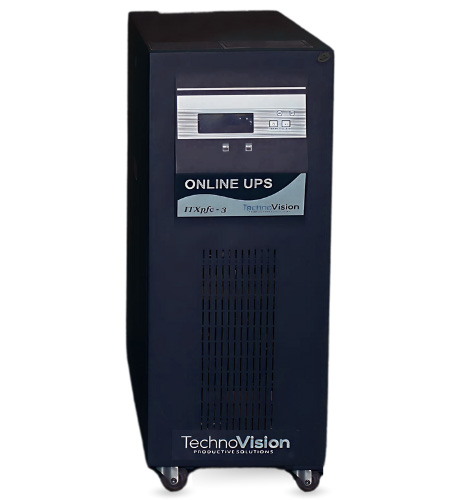

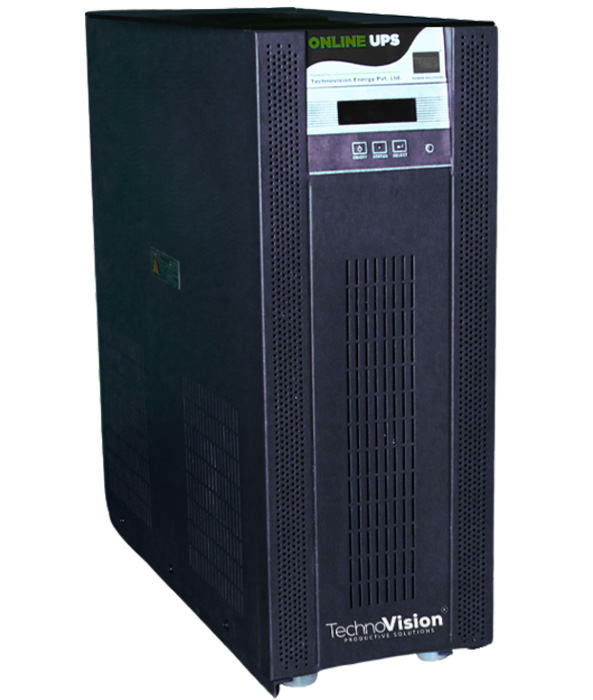

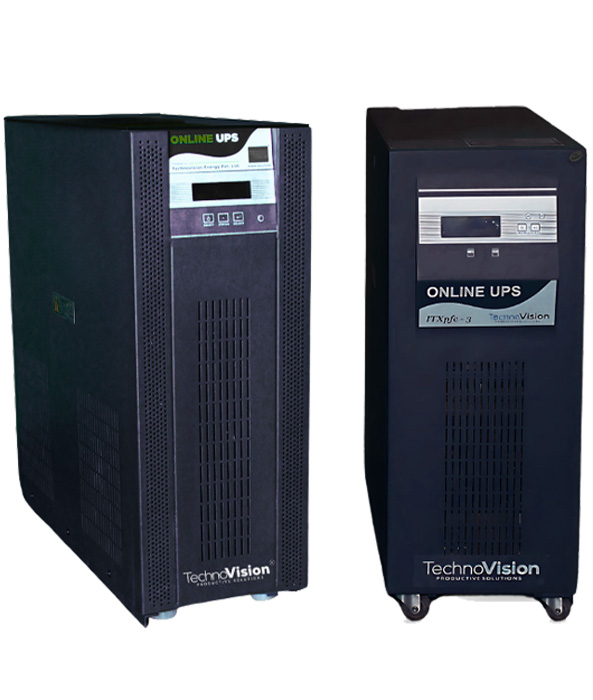

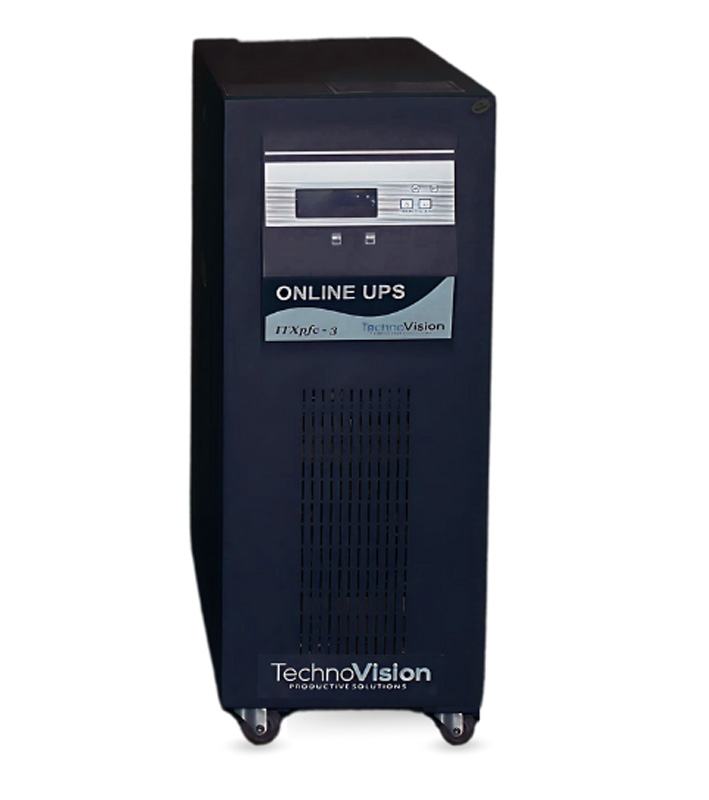

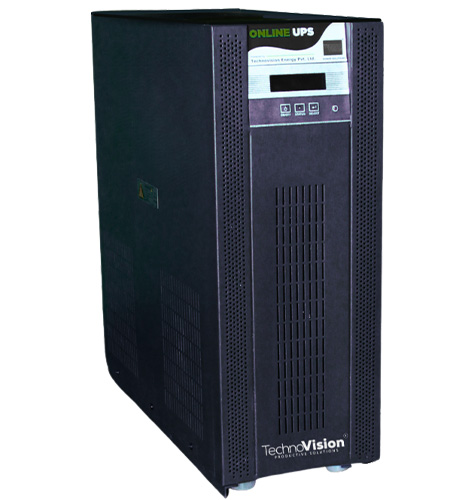

Features:
- Rugged Industrial Design
- Near Unity PF & High Efficiency
- Galvanic Isolation
- Digital Microcontroller based Circuits
- High Operating Efficiency
- Better THD parameters
- Intelligent Battery Management
- Digital Display
Applications
Advantages
- Machine Safety
- Increased Up-time
- Low Maintenance cost
- Lower or Negligible production loss
- Power backup ensures no damage to machines
Protections
- Input Under / Over Voltage
- Over Temperature
- Output Under / Over Voltage
- Input Frequency out of range
- DC High / Low
- Output Overload / Short circuit
Technical Specifications
| Technology | Double conversion, advanced MPWM technology. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||
| Rating | 1Ø Input - 1Ø Output | ||||||||||
Input
| Input Voltage | 230VAC, 1Ø |
| Input Voltage Window | 170VAC - 270VAC |
| Input PFC | 0.99 on full load |
| Power walk in | Soft start for 0-20 seconds power walk-in. |
| Input current harmonic distortion | <7%@100 % Load |
| Input Frequency | 50Hz ± 10% |
Efficiency
| Efficiency- 100% load | >85% - 90% |
|---|---|
| Mode of Operation | Designed for Continuous operation |
| Crest Factor | 3:1 |
| Isolation | True Online with complete galvanic isolation for comprehensive power |
| Fault status display with latch | Mains on, Charger on, Inverter on, Battery Low, Overload, Inverter Trip |
| Parameters on LCD Display | Input Voltage, Output Voltage, Load percentage, Output Frequency, Battery Voltage |
| Protections |
|
| Alarms warning |
|
| Enclosure Protection | IP-20 |
| Cooling | Forced air |
| Acoustic Noise level | <60db @ 1.5 meter |
| Humidity | Up to 95% RH Non condensing |
| Operating ambient Temperature | 0 to 40° C |
| Dimensions in mm D x H x W/Wt. in Kg |
|
| Altitude | < 3000 Feet above sea level (without derating) |
| Testing Standard | AS per IEC 62040-3 |
Rrectifier
| Charging Current Standard | 0-10A |
| Ripple Voltage | <2% without Battery |
| Battery | SMF |
| Charger Type | CCCV |
| Voltage Regulation | ( ± ) 1% |
Inverter
| Inverter Type | IGBT based MPWM with instantaneous Sinewave Control | ||||
|---|---|---|---|---|---|
| Nominal Voltage | 230V/50Hz | ||||
| Power Factor | 0.8 lag | ||||
| Regulation | ( ± ) 1% | ||||
| Total Harmonic Distortion |
|
||||
| Over Load Capacity | 125% -1 Minute : 150% 10 Seconds | ||||
| Transient Response | Output remains within +/- 5% & recover to normal within 20 msec | ||||
| Bypass | Auto bypass |
