| Technology | Common DC bus architecture,Regenerative braking support |
|---|---|
| DC BUS | 120 kW - 300 kWh |
| Rating | 600 V DC to 750 V DC |
| Input AC Voltage | 230VAC ± 10% |
| Input Frequency Range | 50 Hz ± 5% |
| Power Factor | > 0.95 (Typical) |
| AC Current | 9.3A/230VAC (Typical) |
| Inrush Current | Cold Start 50A at 230VAC |
| Leakage Current | < 0.75mA/240VAC |
| Output Voltage | 12-21 VDC |
|---|---|
| Rated Current | 100A |
| Rated Power | 1500W |
| Ripple & Noise | 180mVp-p (Max.) |
| Voltage Tolerance | ±2.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±2.0% |
| Setup, Rise Time | 1800ms, 60ms/230VAC at full load |
| Hold Up Time | 16ms/230VAC at 75% load (Typical) 10ms/230VAC at full load (Typical) |
| Efficiency | 92% (Typical) |
| Control Protection | Reverse Polarity Short Circuit Overcurrent Protection |
|---|---|
| Physical Protection | Input circuit breaker Charger output fuse + Circuit breaker Charger current limit Load current limit |
| Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -10 ~ +60°C |
| Relative Humidity | 20 ~ 95% RH non-condensing |
| Storage Humidity | 10 ~ 95% RH non-condensing |
| Weight | 11 Kg |
| Dimension | 500mm (L) x 310mm (B) x 220mm (H) |
| Communication | CAN |

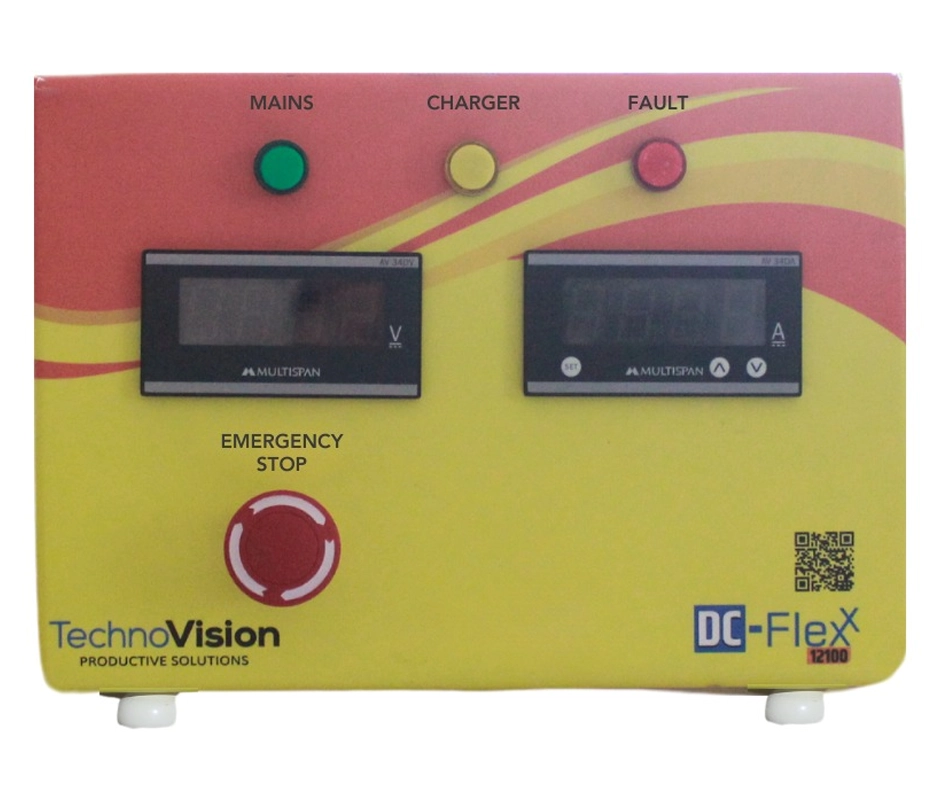

| LED Indication | Reverse Polarity Fault |
| Metering | Charging Voltage and Charging Current |
